A welded part can look straight while it’s hot, then move out of shape as it cools. Welding puts intense heat into a small area. The heated steel expands, then contracts as it cools. When the surrounding metal restrains that movement, the part can pull, bend, twist, or buckle.
This is commonly called weld distortion or heat warp. It can happen on plate, frames, brackets, and assemblies, especially when welds are long, material is thin, or heat is concentrated on one side.
Start by reducing distortion
The best correction is often preventing the warp in the first place. A fabricator can plan the weld sequence, use clamps or fixtures where appropriate, balance welds across the part, and avoid putting more heat into the joint than the job requires. Tack welds and intermediate measurements can also help catch movement before the assembly is fully welded.
These steps reduce the risk, but they can’t guarantee a part won’t move. When distortion does occur, the right correction depends on the material, thickness, shape, weld location, and how far the part has moved.
What back-heating means

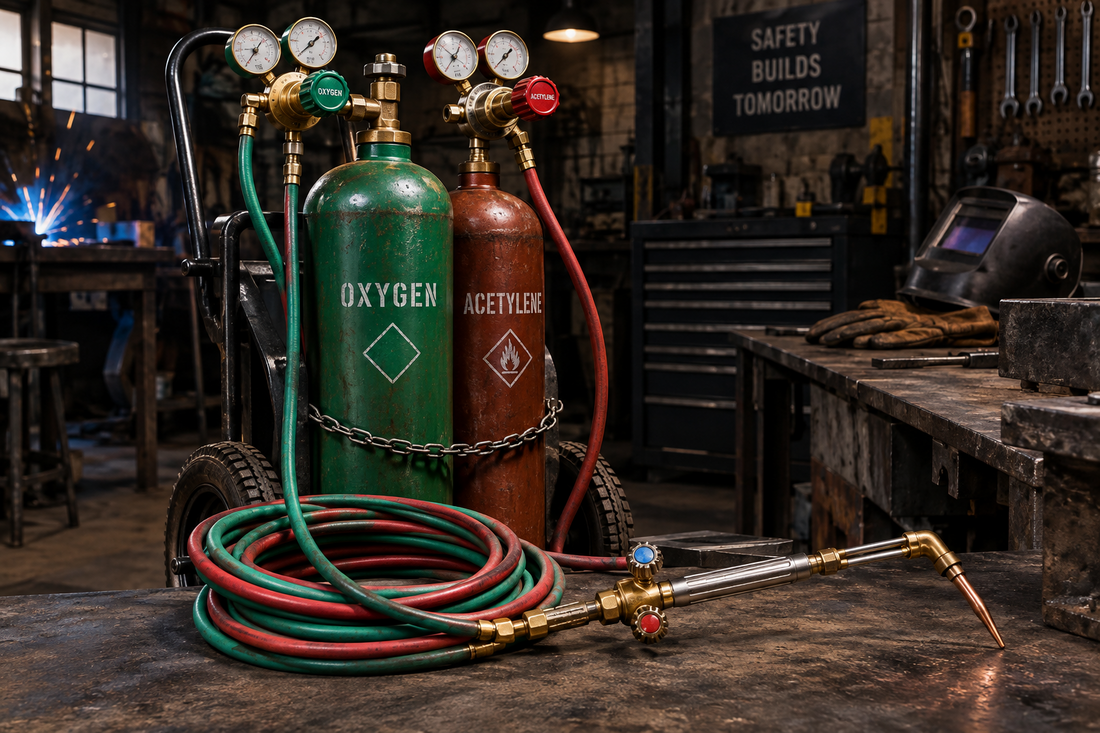

Oxy-fuel back-heating uses a torch to apply controlled heat to a selected area, often on the side opposite the weld or on a carefully chosen area of the distorted part. The aim is to use the metal’s expansion and contraction to pull the part back toward the desired shape as the heated area cools.
That doesn’t mean simply waving a torch over the backside of the weld. The location, size, and amount of heat matter. Heating the wrong area, or applying too much heat, can make the distortion worse or damage the steel.
A skilled fabricator will measure the part and identify the direction of the distortion, choose a heating pattern suited to the part’s geometry and material, apply heat gradually while checking the shape, and let the area cool in a controlled way before measuring again. Back-heating is a correction technique, not a substitute for good weld planning. It may not suit every part, and some assemblies are better corrected with mechanical methods or remade to meet the required tolerances.
Protect the steel as well as the shape
Torch heating can affect more than a part’s dimensions. It can change the properties of heat-treated or hardened steel, and it can damage coatings or nearby components. Do not assume back-heating is safe for AR500 or other hardened, wear-resistant plate. Uncontrolled heat can compromise the material’s hardness and performance. Follow the material manufacturer’s guidance and use a qualified fabricator when the steel’s properties are critical.
The same care applies to structural or load-bearing parts. If a part must meet a code, engineering specification, or tight tolerance, have the correction assessed against those requirements rather than judging it by appearance alone.
The takeaway
Weld warp comes from uneven heating and cooling, and controlled oxy-fuel back-heating can help correct some steel distortion when the material and part are suitable. The key is a measured, deliberate approach. Too much heat or a poorly chosen heating location can create a bigger problem than the original warp.
For a part that needs to be straight, square, or fit to a specific assembly, get an experienced fabricator’s input before applying more heat.
